Specifications
| CODE | 37133 | MODEL | RHM61-120SP |
| AMPS | 7.0 | P1 | P2 | 1.5 | 1.1 |
| RATED FLOW | 60 L/min | RATED HEAD | 47m |
| MAXIMUM FLOW | 120 L/min | MAXIMUM HEAD | 61m |
| SUCTION LIFT | 5m | NO. OF TAPS | 6 – 10 |
| WEIGHT | 13kg | INET | OUTLET | 25mm | 1″ |
| SIZE LxWxH (mm) | 432 x 160 x 343 |

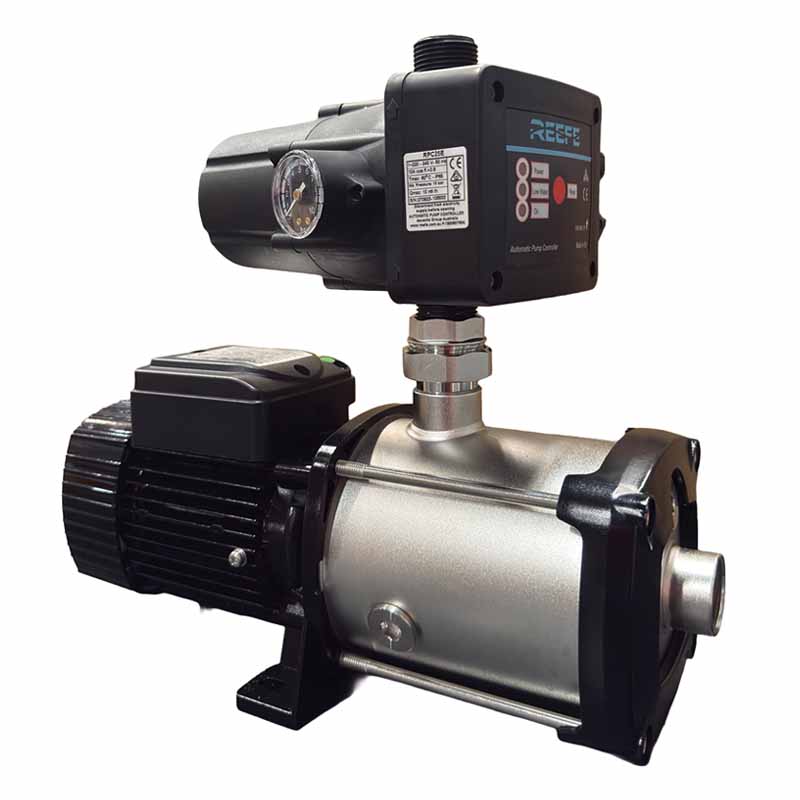

RHM61-120SP Self Priming Multistage Pump
These heavy-duty stainless steel multistage pressure pumps are designed for years if quiet, efficient and vibration free operation. Suitable for many applications from home, farm, or garden to commercial water supply. Capable of handling fluid temperatures up to 104°C. This is an extra quiet pump, which will give many years of trouble-free operation.
Features & Benefits
Easy startup with Self-priming to 5m suction depth
Time saving automatic restart function
Peace of mind with run-dry protection
Ease of service with Quick-Plug electrical connections
Save money on low power consumption
Special function on pressure controller automatically checks for water every 24 hours after a run dry event
Comfortable flow with adjustable start pressure
Certified under AS/NZ4020 safe for use with potable water
Construction
Grade 304 stainless steel housing, impellers, diffusers & shaft
Silicon carbide mechanical seal with viton elastomer’s
Easy fit stainless steel barrel union
RPC25E Pressure Controller with adjustable cut-in
Inbuilt thermal overload protection
Pressure gauge on controller
Stainless steel self priming shroud
16A relay and +/- 20% power tolerance on pressure controller
Ingress Protection IP55
S1 continuous duty industrial grade motor with Class F insulation
Applications
Whole house supply
Small irrigation supply
Stock watering systems – (from water tank)
Water treatment
Filtration systems
HVAC
Pump suitable for water temperature -10°C to +104°C
Max Liquid Temperature with Controller is 60°C
