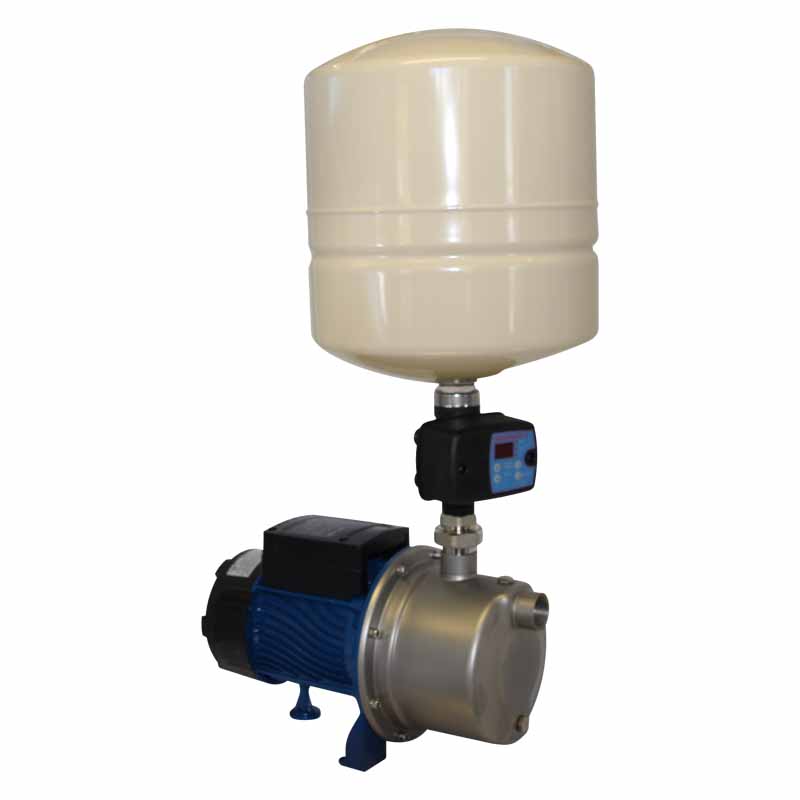

PRJ65E with Pressure Tank, Switch & Gauge

PRJ65E with Pressure Tank, Switch & Gauge

Instruction
Manual

Exploded
View

The PRJ European Series of transfer pumps are of superior quality construction and efficiency giving real power savings to the owner. They are suitable for transfer of clean water for various applications. Quiet running and reliable, ideal for suburban areas. Suitable for Drinking Water - tested to AS4020 for Potable Water.

Specifications

CODE 23907 MODEL PRJ65.PTS
AMPS 4.0 P2 0.6
RATED FLOW 30 L/min RATED HEAD 25.5m
MAX FLOW 70 L/min MAX HEAD 40.5m
NO. OF TAPS 4 – 6 OUTLET 25mm
WEIGHT 13kg SIZE (L x W x H) 440 x 300 x 730

Features & Benefits

High suction lift capability – up to 9m
Certified to AS4020 for use with potable water
Superior Carbon Ceramic Mechanical Seal for durability
Maximum liquid temperature 35°C
Supplied with 18L Presssure tank, XMP12 Pressure Swtich & Pressure Gauge

Construction

Techno polymer diffuser, jet & venturi & impeller
Brass barrel union for high corrosion resistance and longevity
Stainless Steel 304 Pump Body & Shaft for quieter operation
Motor Bracket in die casting aluminium
Carbon mechanical seals for reliability
Highly efficient motor casing withstands high operating temperatures.
IP44 Protection Rating | IP54 Terminal Board Protection | Class F Insulation

Applications

Domestic water supply
Garden irrigation
Clean water transfer
Rain to Mains backup system for new housing
Water storage tank pump set
