Specifications
| CODE | 32534 | MODEL | RSWE60-2.PTS |
| DESCRIPTION | RSWE60-2.PTS Shallow Well Jet Pump | ||
| AMPS | 4.8 | P2 | 0.75 |
| RATED FLOW | 30 L/min | RATED HEAD | 34m |
| MAXIMUM FLOW | 70 L/min | MAXIMUM HEAD | 45m |
| INLET|OUTLET | 25mm | WEIGHT | 19.25kg |
| SIZE (LxWxH) (mm) | 430 x 185 x 640 | ||

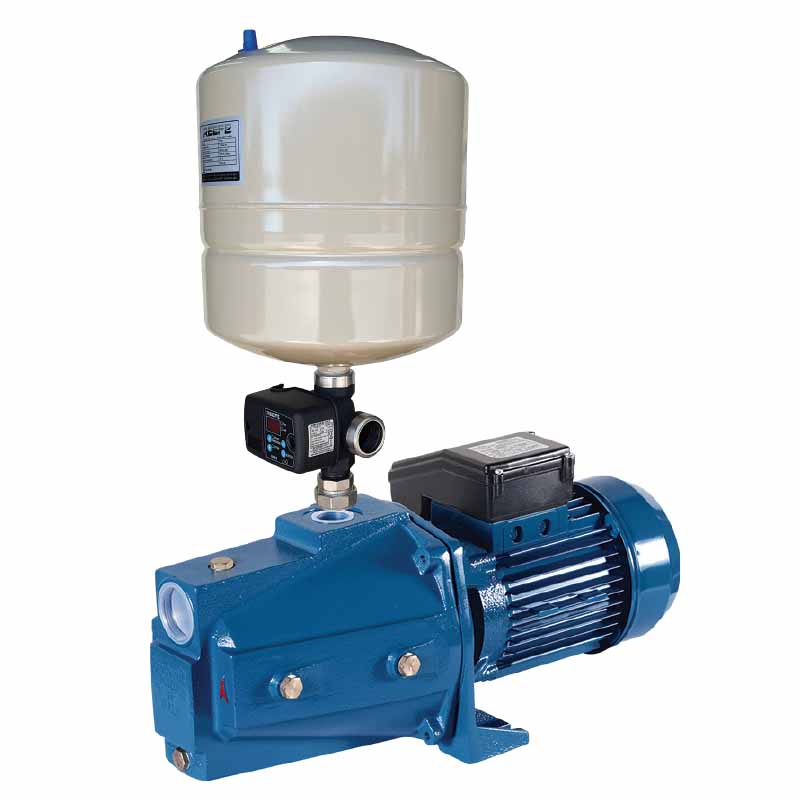

RSWE60-2 Shallow Well Jet Pump with Pressure Tank & Digital Switch
The REEFE self-priming jet pump has been specifically constructed for high demands of suction lift. Suitable for the supply of water to house and garden, stock watering troughs. 100% European made, guaranteeing quality and longer service life.
Features & Benefits
Continuous rated motors to ensure long service life.
Available in various combinations:
- Pump only
- Automatic Pressure Controller (PC)
- Pressure Switch with Tank and Gauge (PTS)
Construction
Cast iron motor bracket and pump body
Venturi in Noryl
Grade 416 stainless steel shaft
Built-in thermal overload protection
Ceramic / Graphite mechanical seal
Supplied with 18L Pressure Tank, EPS1 Pressure Switch & outlet
18L pressure tank with heavy duty butyl diaphragm and stainless threaded inlet
Applications
Clean water transfer
Surface mounted shallow wells
Spear point wells
Garden sprinklers and irrigation
Stock watering
